Hillrom Welch Allyn Diagnostic Cardiology Suite ECG

Hillrom Welch Allyn Diagnostic Cardiology Suite ECG

Designed with your workflow in mind, the Diagnostic Cardiology Suite PC-based ECG includes ECG and spirometry capabilities to help you make informed clinical decisions while performing two reimbursable tests

Features

• See the critical waveform data you need with the widely recognized VERITAS ECG algorithm

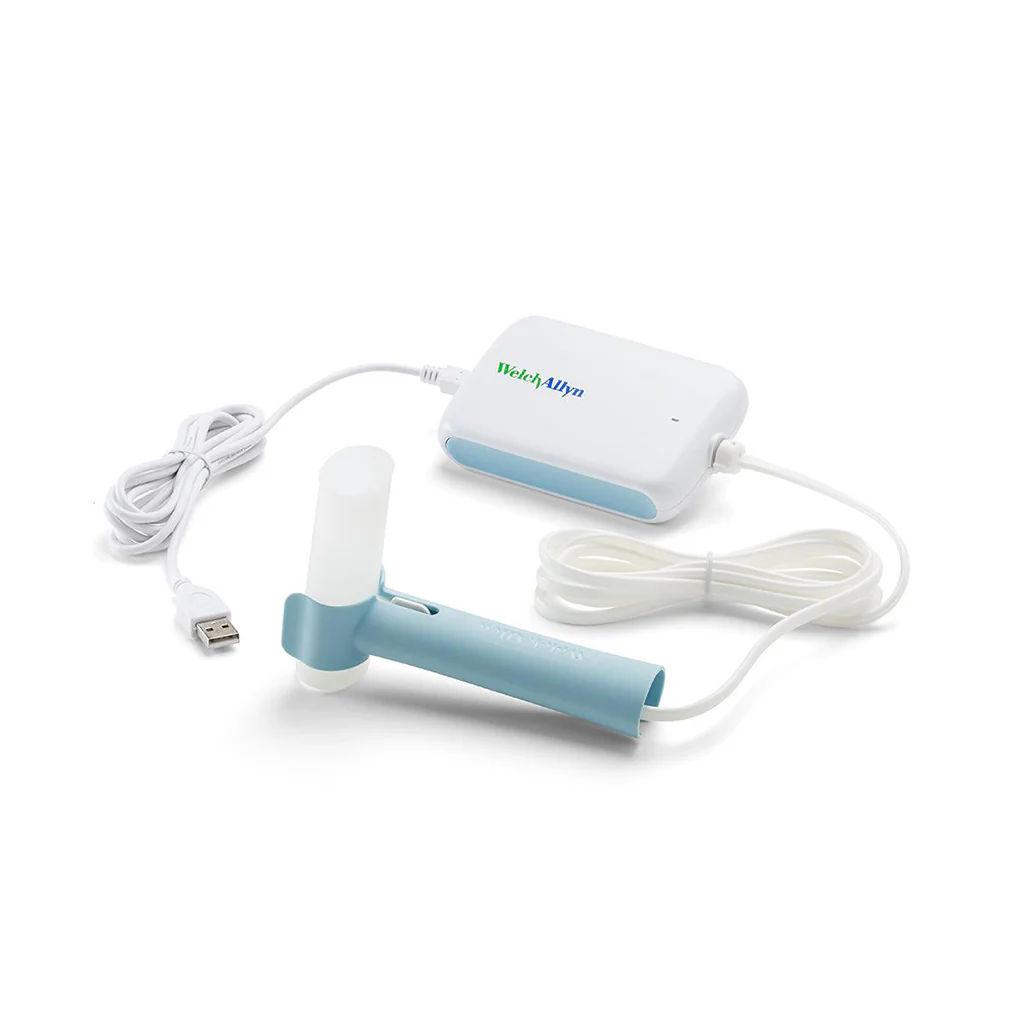

• Launch the ECG and spirometry applications directly from your EMR
• Use one PC-based ECG system for spirometry and ECG exams for a common workflow and setup
• The analysis software helps to streamline your workflow by capturing and saving an ECG in as few as two clicks

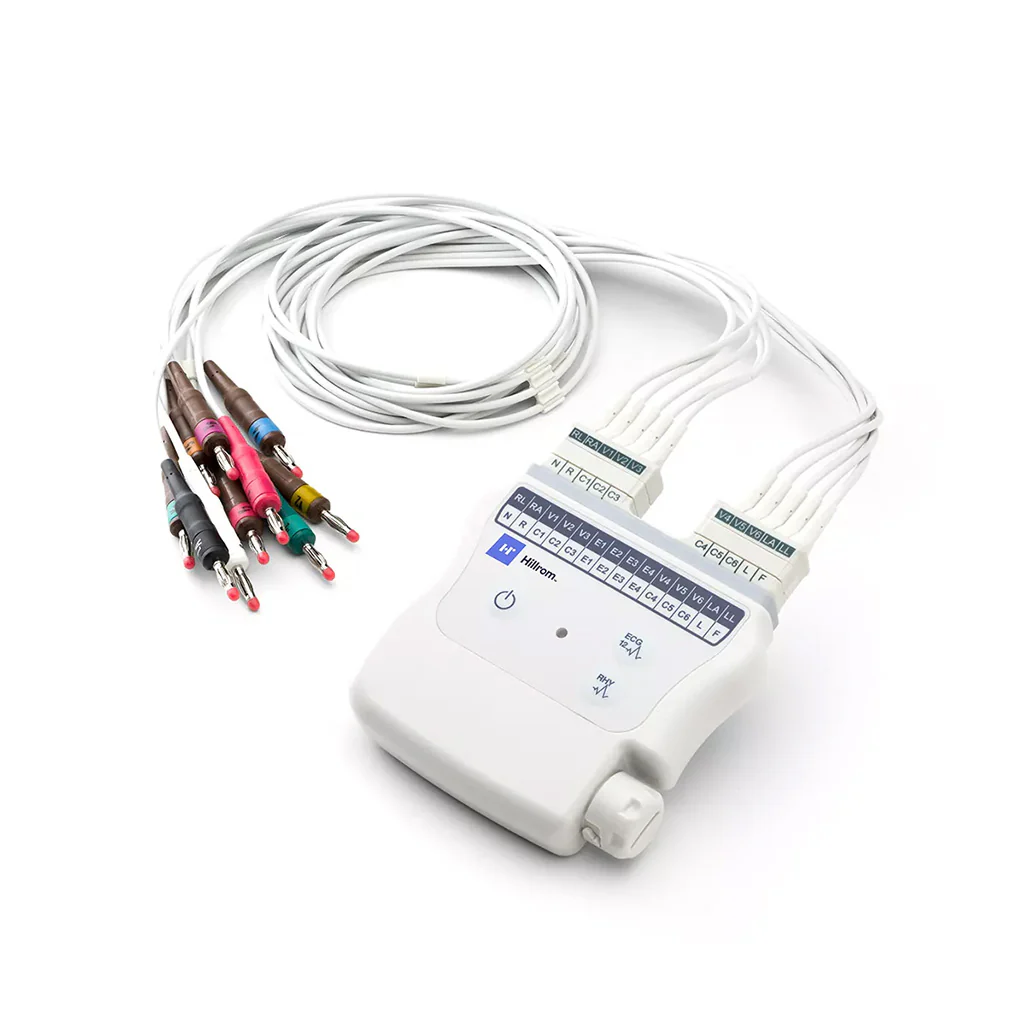

• Capture ECGs wirelessly with the Wireless Acquisition Module (WAM) and help increase workspace flexibility
• Best 10 feature designed to help reduce repeat ECGs by capturing the best 10 seconds DICOM communication to your PACS or ECG management system
• Securely control user logins, assign user roles and access audit trails

Simple - Perform two diagnostic exams with one solution

Secure - Control user logins, assign user roles and access audit trails to secure patient data

Connected - Capture patient data automatically in your EMR

Accurate - High-fidelity ECG data, with preliminary interpretation by the VERITAS algorithm

Specifications

• Input channels: Simultaneous acquisition of all 12 leads
• Standard leads acquired: I, II, III, aVR aVL, aVF, V1, V2, V3, v4, V5, V6
• Frequency response: 0.05 Hz - 300 Hz
• Gain: 2.5, 5, 10, 20 mm/mV
• Storage capacity: Unlimited with external archive
• Operating systems: Microsoft Windows 10 Professional and Enterprise (64-bit), Microsoft Windows 11 Professional and Enterprise
• Compatible viewing resolutions: 1366x768, 1680x1050, 1920x1080, 1920x1200, 2736x1824
• Font scaling: 100%
• Processor: Performance equivalent or better than an Intel Core i3
• RAM: Minimum 4 GB
• Hard Drive Capacity: Minimum 250 GB
• Archive: Network or external USB drive
• Software installation: DVD
• Network: 100 Mbps connection or better
• USB ports: Requires at least two USB 2.0 ports (WAM/AM12 modules, external USB drive)
• Printing device: HP M501dn Windows Printer with HPUPD PCL5 driver or equivalent
